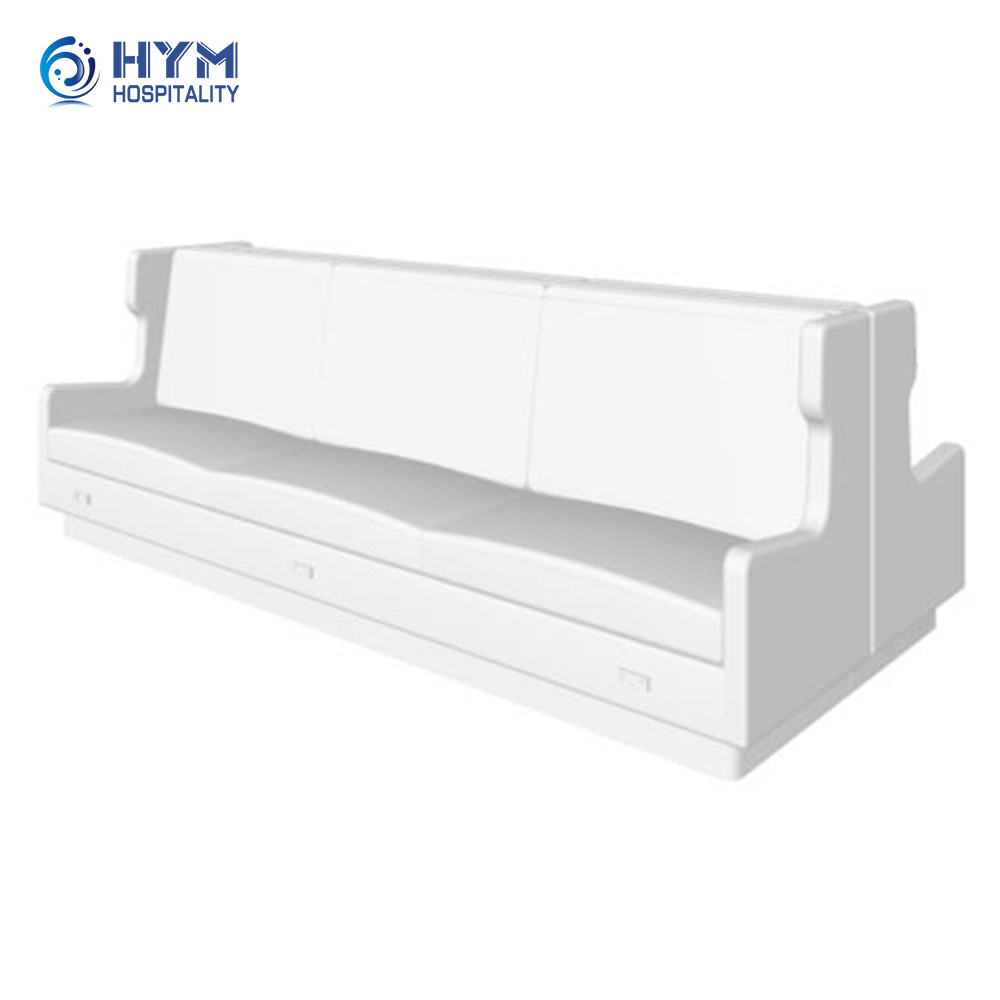

| Description | Lobby Communal Sofa w/ Integrated Power |
| Material/Finish | Wood Stain To Match Wilsonart - Sap Walnut 8221-12 |
| Dimensions | 162"W x 68"D x 47"H |
| Arm Height | 24"H |
| Seat Height | 19.5" |
| Seat Depth | 21" |
| Seat Cushion Style | Loose box cushions, fully removable & reversible with concealed zipper. Cushion to crown. Tethered to sofa with D-Rings & Clips |
| Back Cushion Style | Tight upholstered back - vertical seams to align w/ seat cushions |
| Cushion Content | Must pass NFPA 260/CAL117 Seat: Minimum 2.2 Density HR Foam Back: Minimum 1.8 Density HR Foam |
Power ports to be integrated into front face of upholstered seat frame.
To be fabricated in (6) sections.
Units to be ganged together in-field with manufacturer provided hardware.
Provide cutouts inbetween and at the bottom rear of each section for power cords to run through units.
Coordinate floor power below unit for plug-in power ports.
Heavy duty adjustable glides at corners of all (6) sections.
1. All quantities to be verified by hotel operator prior to purchasing.
2. It is the responsibility of the owner to interpret these specifications for each property.
3. All interpretations of the specification MUST be submitted to Hilton Design Review (projecthub.hilton.com) for final approval prior to purchasing or implementation of any material.
4. Must be of contract quality and suitable for commercial use.
5. COM quantities must be verified by fabricator prior to ordering.
6. All materials and methods of construction must comply with all local fire and life safety codes for use in hotels and other public spaces, and Brand Standards.
7. All internal hardware (hinges, screws, bolts, etc.) shall be corrosion proof.
8. Wood frames to be certified sustainable sources. All stress joints to be connected by double doweled, screwed and glued corner reinforcement
9. Manufacturer to provide nylon carpet glides when applicable.
10. All foam, batting, padding, and Dacron wrap shall be fire retardant to meet all applicable codes.
11. Cushions to be adequately vented for displacement of air and to provide increased comfort.
12. Ensure that upholstered goods will fit in elevators and through doors prior to commencing fabrication.
13. Entire frame and upholstery shall be inspected during the manufacturing and again after final assembly. Tailoring shall be neat, trim and performed in a professional manner.
14. Manufacturer to clearly mark each carton with item ID and specification number.
15. Manufacturer to include all necessary hardware with each item.
16. All glides, casters and ferrules must be properly attached so as to remain permanently in place at all times and capped.
