GR-301 Homewood Suites King Headboard | Efficiency Suite Specialty

Double-Stacked Wall-Mounted Design with High-Performance Performance Vinyl

1. Structural Engineering & Configuration

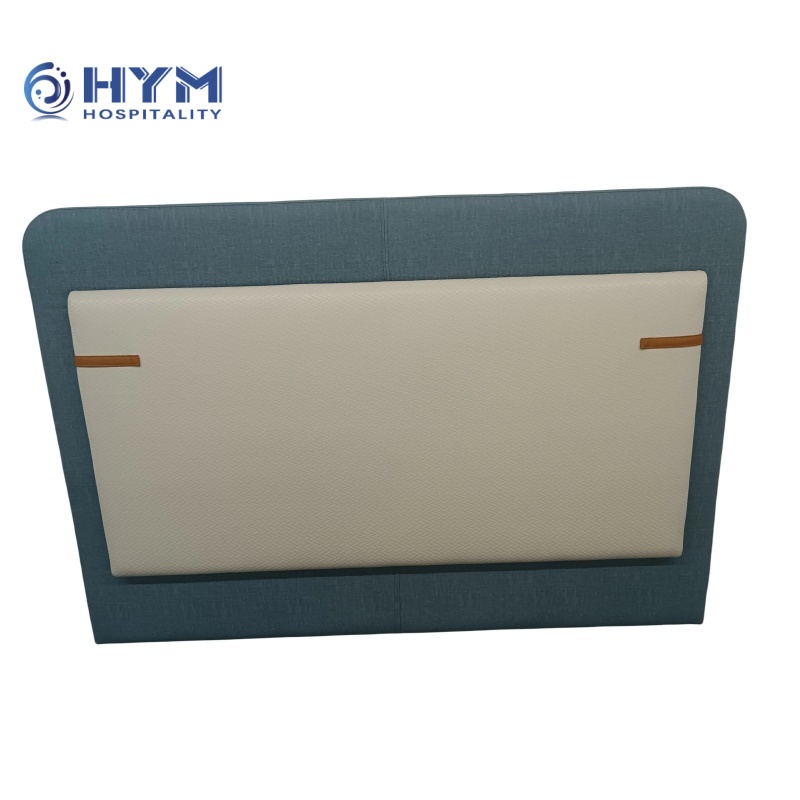

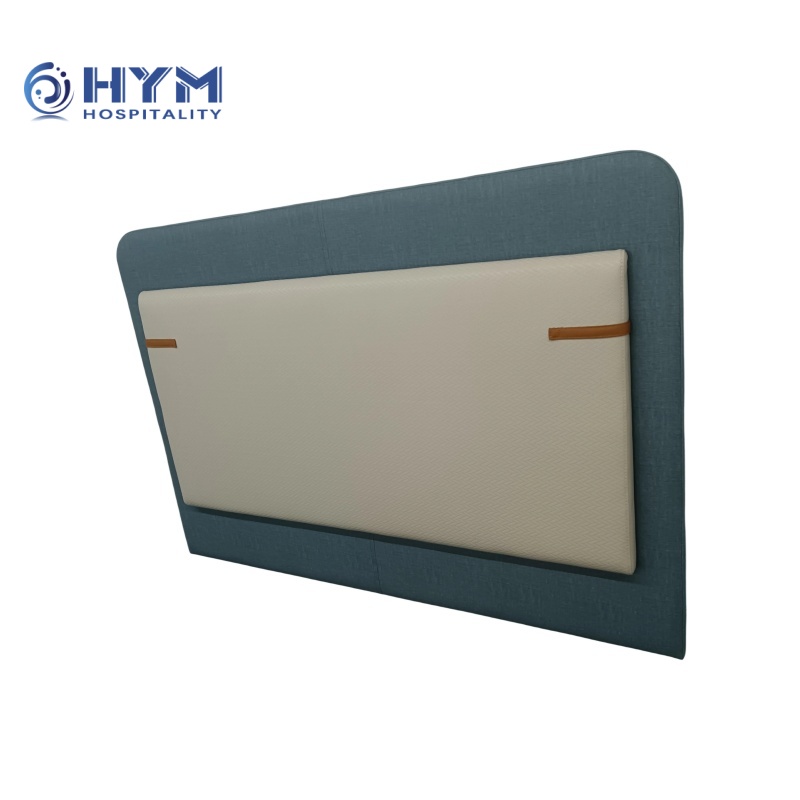

• Double-Stacked Panel System: This unit features a two-part architectural design: a fully upholstered back panel and a fully upholstered front headboard panel, designed to be secured together in the field for maximum stability.

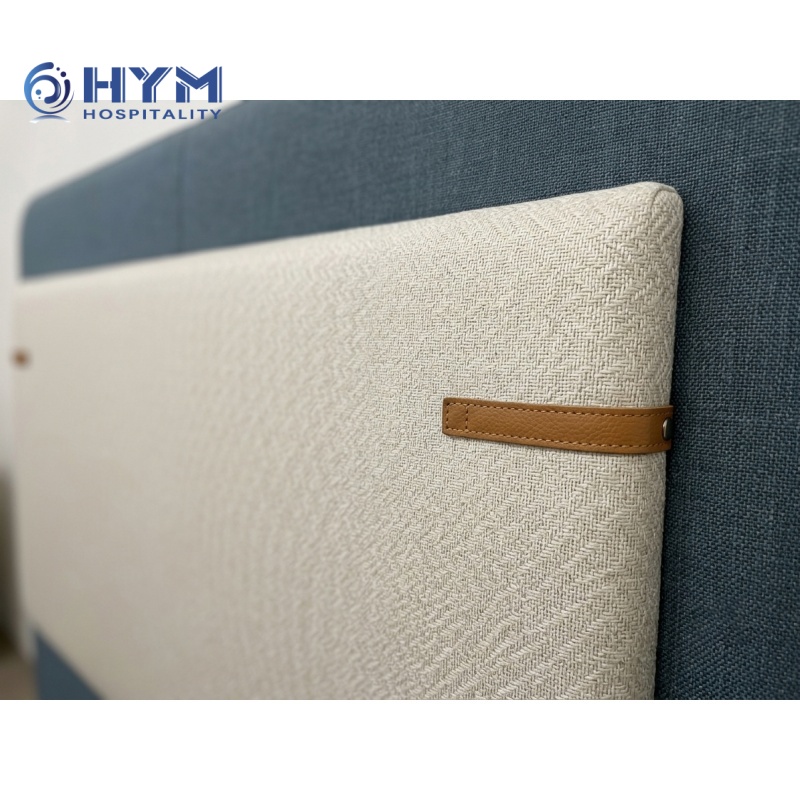

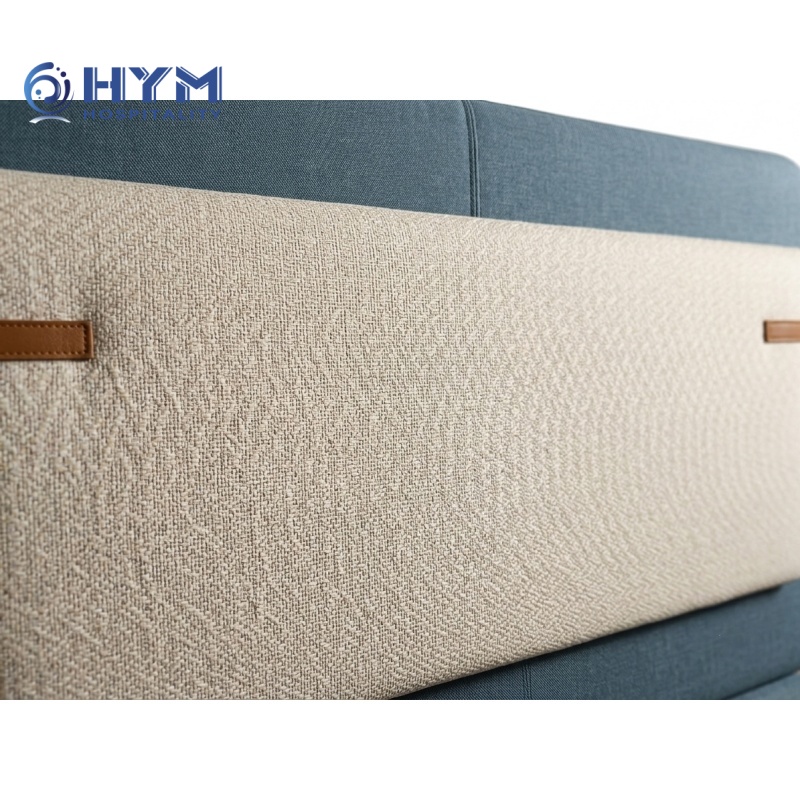

• Architectural Detailing: The back panel is engineered with rounded top corners and a precise straight vertical center seam. The front panel features a seamless surface accented by (2) decorative straps with a signature ‘X’ stitch detail.

• Specific Fitment: Sized at 86"W x 3.5"D x 40.5"H, specifically engineered for the King Low Wall configuration in Efficiency Suites.

2. Premium Upholstery & Performance Standards

• Railroaded Pattern Orientation: The front panel vinyl utilizes a Railroaded application, ensuring the linear pattern runs horizontally across the headboard when installed for a cohesive look.

• High-Traffic Durability:

• Back Panel: Fabric Innovations "Wanna Be - HWS" (Khaki), rated for 200,000 Double Rubs.

• Front Panel: Valley Forge "Rock Stitch Vinyl 4", rated for 50,000 Double Rubs.

• Straps: Valley Forge "Admiration", rated for 100,000 Double Rubs.

3. Safety Compliance & Internal Core

• Fire Retardant Materials: All foam, batting, padding, and Dacron wrap are treated with fire retardants to meet all applicable North American hospitality codes (including CAL 117 and NFPA-260).

• High-Resiliency Foam:

• Back Wall Panel: Built with 1.8 Density, 50lb foam for structural support.

• Front Headboard Panel: Built with 1.8 Density, 40-50lb foam for guest comfort.

• Load-Bearing Support: We provide all necessary support hanging hardware, engineered to support a minimum weight of 250 lbs.

4. Technical Specification Matrix
